OneQA™

OneQA™ Workflow Automation Software streamlines biomedical testing by connecting Fluke Biomedical test tools with your CMMS and asset management systems. From work order preparation to automated testing and traceable reporting, OneQA standardizes workflows, eliminates manual data entry, and improves efficiency across your entire preventive maintenance program.

Deployment: Cloud-based workflow automation platform
Integration: Fluke Biomedical test tools and CMMS systems

Unit FeaturesCaractéristiques de l'unitéSoftware FeaturesCaractéristiques du logiciel

Automates biomedical testing workflows from start to finish

Integrates with Fluke Biomedical analyzers and CMMS platforms

Key Benefits

Automates QA and preventive maintenance workflows from preparation through final reporting.

Integrates with CMMS and asset management systems to populate work orders automatically.

Standardizes testing procedures across all technicians and facilities.

Eliminates manual data entry to reduce errors and improve consistency.

Allows administrators to update procedures centrally, ensuring technicians always follow the latest workflows.

Share procedures, photos, instructions, and key insights across teams.

Automatically backs up completed work orders and test records.

Improves patient and operator safety by reducing routine manual tasks.

Generates traceable reports with calibration dates and applicable electrical safety standards.

Saves time while increasing productivity and compliance across biomedical departments.

Specifications

Platform Type:
Cloud-based workflow automation software.

Primary Function:
Automates biomedical equipment testing, preventive maintenance workflows, and reporting.

System Integration:
Integrates with Fluke Biomedical test equipment and CMMS/asset management systems.

Workflow Automation:
Supports work order preparation, automated testing, data collection, and archival reporting.

Centralized Administration:
Updates procedures centrally so all technicians work from the latest approved processes.

Data Management:
Automatically captures test results, populates work orders, and stores completed records for future reference.

Reporting:
Creates traceable compliance reports including calibration records and electrical safety standards.

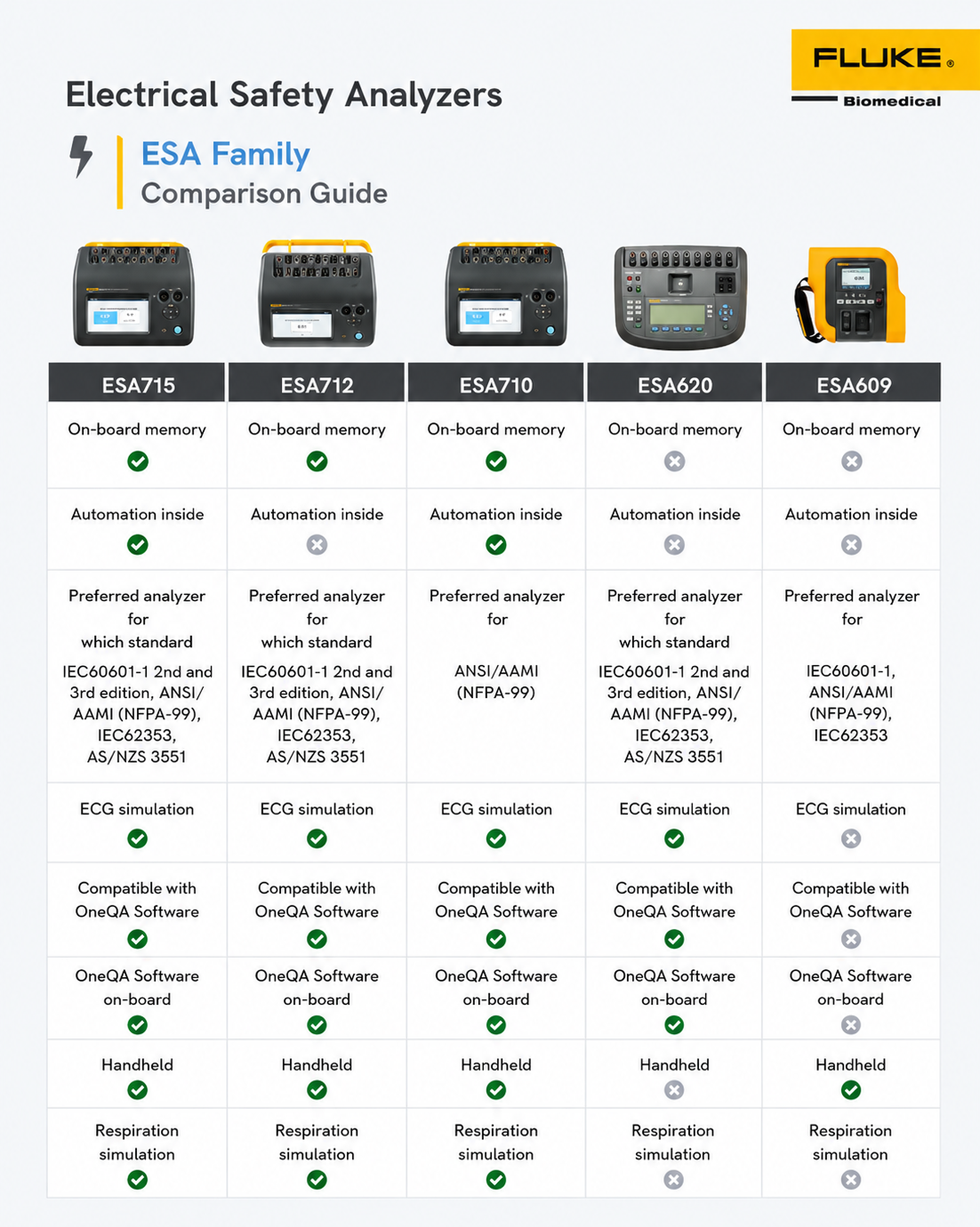

Comparison Guide

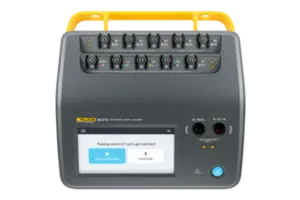

ESA715

The ESA715 Electrical Safety Analyzer is an all-in-one electrical safety analyzer and patient simulator designed to simplify automated medical equipment testing. Compact, portable, and OneQA-enabled, it helps healthcare technology management professionals perform everything from routine troubleshooting to comprehensive electrical safety testing while improving efficiency, accuracy, and compliance with global safety standards.

Dimensions (WxDxH): 214 × 207 × 92 mm (8.4 × 8.1 × 3.6 in)
Weight: 1.3 kg (2.7 lbs)

Unit FeaturesCaractéristiques de l'unitéSoftware FeaturesCaractéristiques du logiciel

OneQA-enabled workflow automation with onboard test sequences

Electrical safety analyzer and patient simulator in one device

Additional Features

5-inch touchscreen with intuitive user interface.

Compact, lightweight, ergonomic design with integrated carrying handle.

Wireless capability automatically synchronizes test results with your PC.

Ten applied parts posts with LED lighting guidance for simplified connections.

Supports insulation resistance testing at 50 V, 100 V, 250 V, and 500 V.

Automated compliance testing for NFPA 99, AAMI ES1, AS/NZS 3551, IEC 62353, EN 50678/50699, and IEC 60601-1.

Combines ECG waveform simulation and dual-lead measurements into one device.

Upload images, instructions, and text directly into testing procedures.

Easy data entry using barcode scanner, external keyboard, or touchscreen keyboard.

20 A at 120 V equipment current capability.

Replaceable mains fuses minimize downtime.

Rugged field-tested construction with CE and CSA certifications.

Global Fluke Biomedical support and Protect+ service coverage.

Specifications

Safety Standards:
IEC 61010-1, IEC 61010-2-034, IEC 61557-16 compliant. Supports testing to NFPA 99, AAMI ES1, IEC 62353, IEC 60601-1, EN 50678/50699, and AS/NZS 3551.

Operating Temperature:
0°C to +35°C (+50°F to +95°F)

Storage Temperature:
−20°C to +60°C (−4°F to +140°F)

Operating Humidity:
10–90% non-condensing

Battery:
Built-in rechargeable lithium-ion battery with up to 2 hours of operation.

Connectivity:
1 × USB-C for PC communication, 2 × USB-A for peripherals.

Display:
5-inch touchscreen display.

Data Storage:
More than 10,000 measurements.

Equipment Current:
0–20 A AC RMS with continuous operation up to 10 A.

Leakage Current Range:
0 µA–20 mA with AC, DC, and true RMS measurement modes.

Insulation Resistance:
50 V, 100 V, 250 V, and 500 V DC testing up to 100 MΩ.

ECG Simulation:
Supports ECG waveforms from 30–240 BPM, ventricular fibrillation, pulse, square wave, and triangle wave simulation.

Respiration Simulation:
Apnea and 10–100 BrPM with selectable respiration lead and normal waveform simulation.

ESA712

The ESA712 Electrical Safety Analyzer is a portable, manually operated electrical safety analyzer and patient simulator designed for fast, accurate medical equipment testing. Combining comprehensive electrical safety measurements with patient simulation in one compact device, the ESA712 provides healthcare technology management professionals with a complete manual solution for troubleshooting, preventive maintenance, and compliance testing in both the field and clinical environments.

Dimensions (WxDxH): 214 × 207 × 92 mm (8.4 × 8.1 × 3.6 in)
Weight: 1.3 kg (2.7 lbs)

Unit FeaturesCaractéristiques de l'unitéSoftware FeaturesCaractéristiques du logiciel

Manual electrical safety testing with intuitive touchscreen operation

Electrical safety analyzer and patient simulator in one device

Additional Features

5-inch touchscreen with intuitive user interface.

Compact, lightweight, ergonomic design with integrated carrying handle.

Ten applied parts posts with LED lighting guidance for simplified testing.

Supports insulation resistance testing at 50 V, 100 V, 250 V, and 500 V.

Meets key electrical safety standards including NFPA 99, AAMI ES1, IEC 62353, EN 50678/50699, IEC 60601-1, and AS/NZS 3551.

Combines ECG waveform simulation and dual-lead measurements into a single instrument.

Easy data entry using a barcode scanner, external keyboard, or touchscreen keyboard.

20 A at 120 V equipment current capability.

Replaceable mains fuses reduce downtime and keep the analyzer in service.

Rugged construction tested for demanding field environments with CE and CSA certifications.

Backed by Fluke Biomedical's Protect+ service program and global support network.

Specifications

Safety Standards:
IEC 61010-1, IEC 61010-2-034, and IEC 61557-16 compliant. Supports testing to NFPA 99, AAMI ES1, IEC 62353, IEC 60601-1, EN 50678/50699, and AS/NZS 3551.

Operating Temperature:
0°C to +35°C (+50°F to +95°F)

Storage Temperature:
−20°C to +60°C (−4°F to +140°F)

Operating Humidity:
10–90% non-condensing

Battery:
Built-in rechargeable lithium-ion battery with up to 2 hours of operation.

Connectivity:
1 × USB-C for PC communication, 2 × USB-A for peripherals.

Display:
5-inch touchscreen display.

Data Storage:
More than 10,000 measurements.

Equipment Current:
0–20 A AC RMS with continuous operation up to 10 A.

Leakage Current Range:
0 µA–20 mA with AC, DC, and true RMS measurement modes.

Insulation Resistance:
50 V, 100 V, 250 V, and 500 V DC testing up to 100 MΩ.

ECG Simulation:
Supports ECG waveforms from 30–240 BPM, ventricular fibrillation, pulse, square wave, and triangle wave simulation.

Respiration Simulation:
Apnea and 10–100 BrPM with selectable respiration lead and normal waveform simulation.

ESA620

ESA609 Electrical Safety Analyzer is a rugged, portable and easy-to-use analyzer designed for general electrical safety testing.

Weight: 4.7kg (10.25 lb)
Dimensions (WxDxH): 31 cm x 23 cm x 10 cm (12.6 in x 9.3 in x 5 in)

Unit FeaturesCaractéristiques de l'unitéSoftware FeaturesCaractéristiques du logiciel

Compliance with a wide array of global standards

Three test loads

Additional Features

10 easy-to-use insulated applied parts connections

25 A equipment current

Electrocardiogram and performance waveforms

AC only, DC only and True RMS leakage readings

Large display with adjustable contrast

Ergonomic design

CE, C-Tick, and CSA for USA and Canada certification

Specifications

Temperature Requirements: 10 ºC to 40 ºC (50 ºF to 104 ºF) when operating; -20° C to 60° C (-4 °F to 140 °F) in storage

Humidity: 10 % to 90 % non-condensing

Altitude
120 V ac mains supply voltage: 5000 m
230 V ac mains supply voltage: 2000 m

Power ratings
115 Volt power outlet: 90 to 132 V ac rms, 47 to 63 Hz, 20 A maximum
230 Volt power outlet: 180 to 264 V ac rms, 47 to 63 Hz, 16 A maximum

Power input: 115V 20A - 2.6kVA and 230V at 16A - 4.2kVA

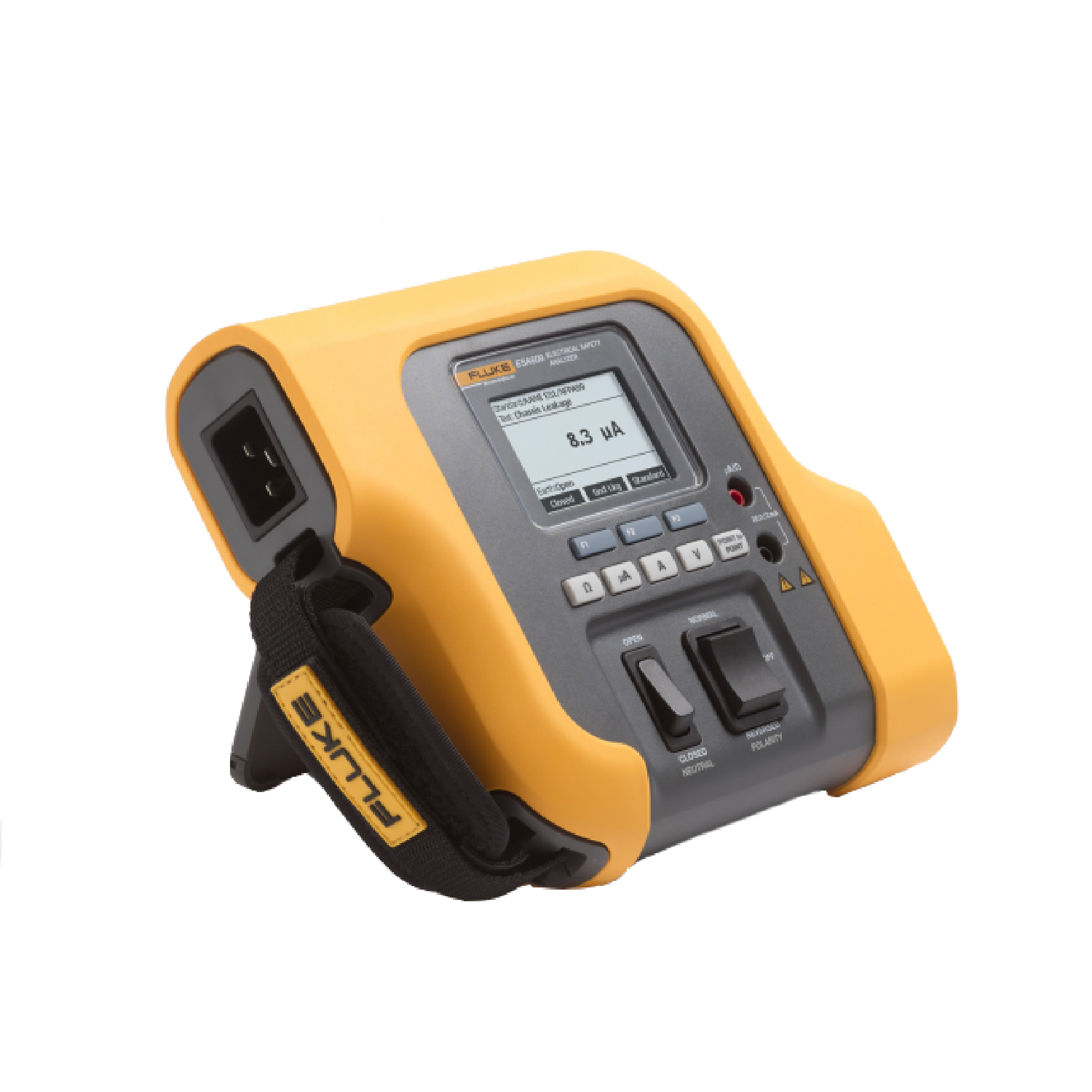

ESA609

The ESA609 Electrical Safety Analyzer is a rugged, portable and easy-to-use analyzer designed for general electrical safety testing, and requires no prior training.

Dimensions (WxDxH): 20 cm x 18 cm x 5 cm (7.9 in x 7.1 in x 2.1 in)
Weight: 0.7 kg (1.5 lb)

Unit FeaturesCaractéristiques de l'unitéSoftware FeaturesCaractéristiques du logiciel

Rubberized case and Ingress Protection

Featherweight design, functional strap, and tilt stand

Additional Features

Rubberized case and Ingress Protection rating of IP30 prevent damage and sustain the rigor of transportation

Portable: Featherweight design, functional strap, and tilt stand make it easy for transportation and operation on-the-go (onsite or offsite)

Quick push-button operation for rapid testing

Global Use: the ESA609 will operate at 120V and 230V

Rigorously tested for safety and reliability, with CE, CSA and Australia RCM in addition to Fluke quality

Two-year extended warranty (no-cost, available after first-year calibration at any authorized Fluke Biomedical Service Center)

Specifications

Temperature Requirements: 0° C to 50° C (32 °F to 122 °F) when operating; -20° C to 60° C (-4 °F to 140 °F) in storage

Humidity: 10 % to 90 % non-condensing

Display: LCD display

Modes of Operation: Manual

Altitude
120 V ac mains supply voltage: 5000 m
230 V ac mains supply voltage: 2000 m

Power ratings
115 Volt power outlet: 90 to 132 V ac rms, 47 to 63 Hz, 20 A maximum
230 Volt power outlet: 180 to 264 V ac rms, 47 to 63 Hz, 16 A maximum

Power input: 115V 20A - 2.6kVA and 230V at 16A - 4.2kVA

Environmental
Agency Approvals: CE, CSA, Australia RCM
Safety: IEC 61010-1: Overvoltage Category II, Measurement 300V CAT II, Pollution Degree 2
Electromagnetic Environment: IEC 61326-1:Portable
Emissions Classification: IEC CISPR 11:Group 1, Class A.

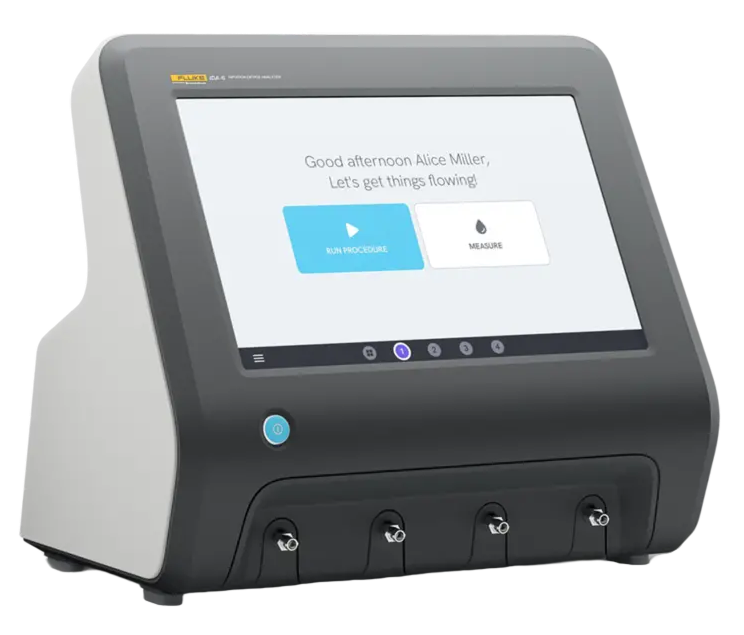

IDA-6

The IDA-6 Infusion Device Analyzer is a modular, multi-channel infusion pump analyzer designed to dramatically reduce testing time while improving accuracy and consistency. Featuring integrated OneQA workflow automation, IntelliPump™ Technology, and a large intuitive touchscreen, the IDA-6 automates testing procedures, stores results automatically, and synchronizes data with your PC for faster preventive maintenance and regulatory compliance.

Dimensions: 295 × 210 × 260 mm (11.6 × 8.3 × 10.1 in)
Weight: 3.8 kg (8.4 lbs)

Unit FeaturesCaractéristiques de l'unitéSoftware FeaturesCaractéristiques du logiciel

OneQA workflow automation for faster, standardized testing

Test up to four infusion pumps simultaneously

Additional Features

OneQA-enabled workflow automation improves testing accuracy, efficiency, and consistency.

Achieves low-flow stable readings up to 100× faster than the IDA-5.

IntelliPump™ Technology recirculates water during testing, eliminating repriming between tests.

Modular architecture supports one to four removable testing channels.

Removable channel modules simplify calibration and minimize downtime.

Fully compliant with IEC 60601-2-24 standards.

Meets or exceeds most OEM low-flow accuracy requirements.

Flow and volume measurements are up to 100× more accurate than the IDA-5, with 60× greater resolution.

Create and customize pre-built testing procedures for virtually any infusion device.

Wireless connectivity automatically synchronizes test results to your PC.

Large 10-inch multi-touch display with intuitive user interface.

Upload images, instructions, and text directly into testing procedures.

Detects flow as low as < 0.0003 mL for immediate results.

Verifies PCA, bolus, and occlusion functionality.

Specifications

Flow Range:
0–3000 mL/h (steady flow), 0–1500 mL/h (peristaltic flow)

Flow Resolution:
0.001 mL/h

Flow Accuracy:
± (1% + 0.005 mL/h) below 500 mL/h, otherwise ±2%

Volume Range:
0–100,000 mL

Peak Pressure Range:
−200 to +2600 mmHg (−3.8 to +50 psi)

Back Pressure Range:
−200 to +600 mmHg (−3.8 to +11.6 psi)

Operating Temperature:
+15°C to +30°C (+59°F to +86°F)

Storage Temperature:
−20°C to +70°C (−4°F to +158°F), when drained

Humidity:
<90% relative humidity, non-condensing

Power:
19 V DC, 3 A

Connectivity:
1 × USB-C (PC communication), 3 × USB-A (peripherals)

Display:
10-inch multi-touch display, 800 × 600 pixels

Data Storage:
More than 10,000 measurements

Available Configurations:
1, 2, or 4 testing channels, with modular expansion capability.

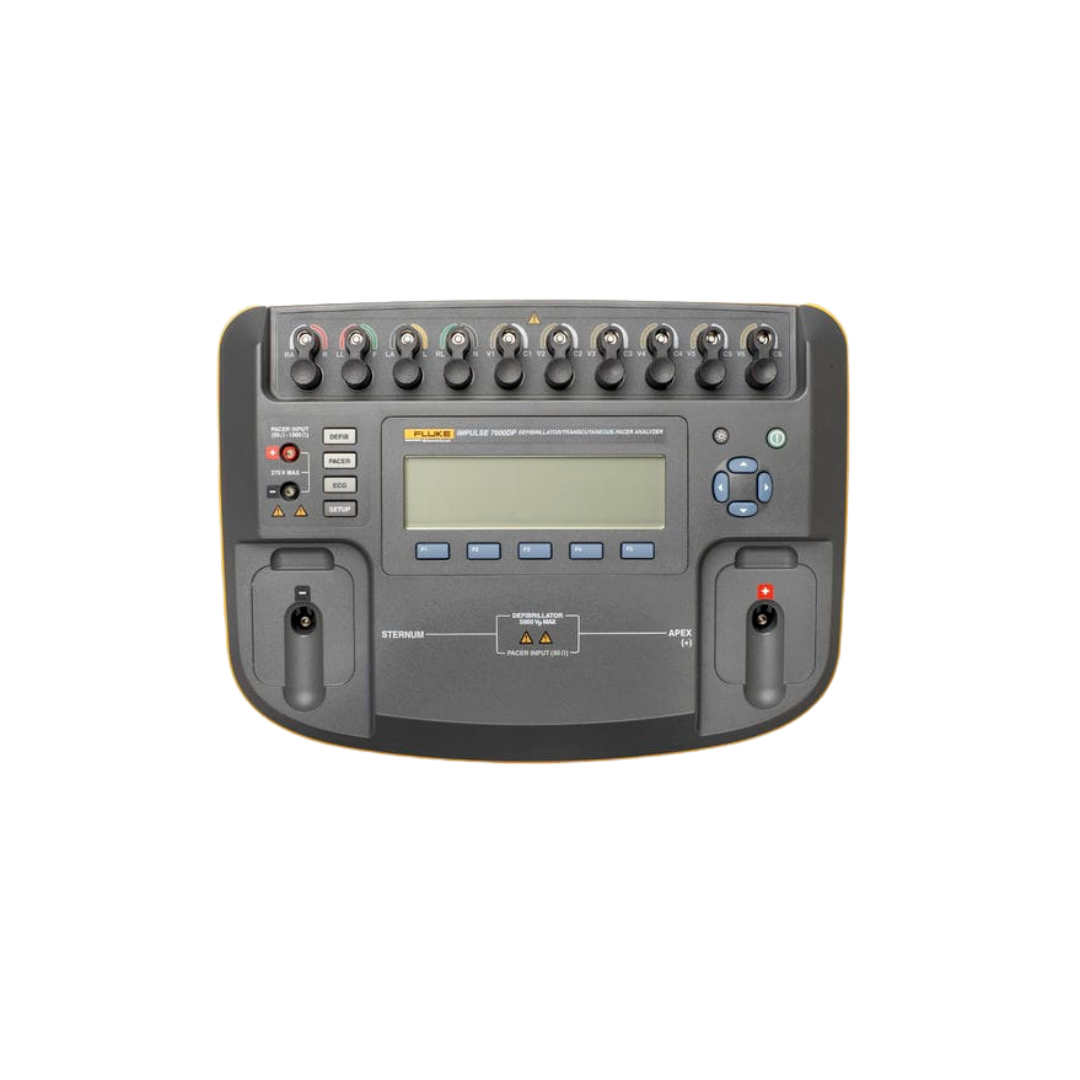

Impulse 7000DP

Ensures proper operation and ultimate performance of critical life-support cardiac-resuscitation equipment.

The Impulse 7000DP Defibrillator/Transcutaneous Pacemaker Analyzer ensures proper operation and ultimate performance of critical life-support cardiac-resuscitation equipment. The Impulse 7000DP is superior in compliance, technology, efficiency and ease of use.

Dimensions: 32 cm x 24 cm x 13 cm (13 in x 9.5 in x 5 in)
Weight: 3.02 kg (6.6 lb, 0.1 oz)

Unit FeaturesCaractéristiques de l'unitéSoftware FeaturesCaractéristiques du logiciel

Portable, rugged, easy to carry

Long-lasting, rechargeable battery

Additional Features

Impulse 7010 Defibrillator Selectable Load Accessory provides multiple loads of 25 Ω, 50 Ω, 75 Ω, 100 Ω, 125 Ω, 150 Ω, 175 Ω, and 200 Ω to comply with IEC 60601-2-4 standard (optional)

Lown, Edmark, trapezoidal, biphasic and pulsed-biphasic defibrillation technology compatibility

Ability to test external transcutaneous pacemakers (Impulse 7000 DP only)

Flexible heart-rate settings (1BPM step)

10 independent ECG outputs that provide 12 lead combinations for standardized clinical signals

Flexible heart-rate settings (1 BPM step) facilitate rate meter accuracy and alarm testing

Two-year extended warranty (no-cost extended warranty available after first-year calibration at any Fluke Biomedical authorized service center)

Specifications

Temperature Requirements: 10 °C to 40 °C (50 °F to 104 °F) when operating -20 °C to +60 °C (-4 °F to +140 °F) in storage

Humidity: 10 % to 90 % non-condensing

Display/Control: LCD graphic display

Modes of Operation: Manual and remote

Battery charger: 100 V to 240 V input, 15 V/1.5 V A output.

Safety: IEC/EN 61010-1, Pollution Degree 2

Electromagnetic Compliance: UL61010-1 C-Tick: Australian

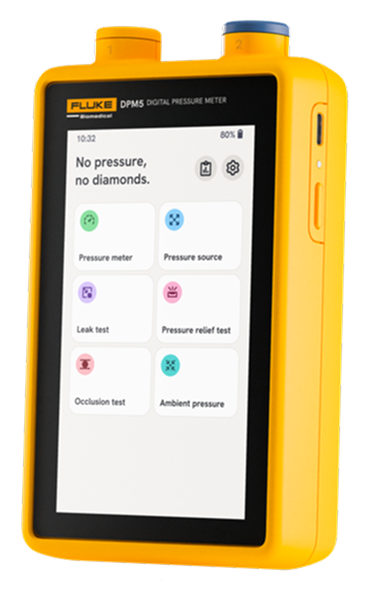

DPM5

The DPM5 Digital Pressure Meter is a portable, high-precision pressure testing solution designed for biomedical device testing. Featuring an integrated pressure pump, dual-port functionality, and preloaded measurement applications, the DPM5 streamlines pressure verification for a wide range of medical devices, delivering accurate, reliable results while simplifying testing workflows.

Dimensions (D x W x H): 90 × 37 × 154 mm (3.5 × 1.46 × 6.1 in)
Weight: 400 g (0.88 lbs)

Unit FeaturesCaractéristiques de l'unitéSoftware FeaturesCaractéristiques du logiciel

Integrated pressure pump with dual-port measurement system

Preloaded pressure testing applications for faster workflows

Additional Features

Dual-port design supports both dry gas and liquid pressure measurements.

Integrated pressure pump eliminates manual pressure generation.

Ideal for testing patient monitors, blood pressure meters, CPAP/BPAP devices, syringe and infusion pumps, dialysis machines, insufflators, and more.

Preloaded applications for occlusion, leakage, valve testing, pressure source verification, and atmospheric pressure measurements.

Intuitive 5-inch touchscreen for simple setup, testing, and result review.

Lightweight, battery-powered design for portable field and facility testing.

USB-C connectivity for charging and PC communication.

Built-in rechargeable battery provides over 24 hours of continuous operation.

Stores more than 4,000 measurements onboard.

Standard tripod mounting thread for hands-free operation.

Specifications

Measurement Ports:
Dual-port system with dedicated gas and liquid pressure measurement capabilities.

Port 1 Pressure Range:
0–1200 mmHg (0–23 psi) for dry, non-corrosive gases with integrated pressure source.

Port 2 Pressure Range:
−725 to 7500 mmHg (−14 to 150 psi) for dry gas or water applications.

Measurement Units:
mmHg, inHg, psi, mbar, bar, atm, kPa, cmH₂O, and inH₂O.

Operating Temperature:
+10°C to +40°C (+50°F to +104°F).

Storage Temperature:
−20°C to +50°C (−4°F to +122°F).

Operating Humidity:
10–90% non-condensing.

Battery:
Built-in rechargeable lithium-ion battery with more than 24 hours of continuous operation.

Connectivity:
USB-C for charging and PC communication.

Display:
5-inch touchscreen display.

Data Storage:
More than 4,000 measurements.

Pressure Source Accuracy (Port 1):
± (1% + 1 mmHg).

Barometer Range:
65–110 kPa with ±1% accuracy.

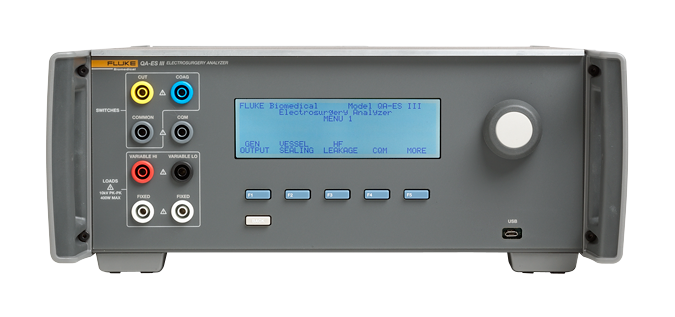

QA-ES III

Complete electrosurgical testing and preventive maintenance for ESU devices.

Easily test and wirelessly* download all critical functions with precise power, current, frequency, crest factor and load resistance ranges while ensuring ESU safety, using the QA-ES III ESU analyzer. Quickly collect all measurements, including vessel sealing, contact quality monitor (CQM), high frequency (HF) leakage, and output power distribution (single or continuous mode) with the user-friendly interface guide. Ensure the performance and safety of electrosurgical units with simplified testing using the QA ES III electrosurgical analyzer. The QA-ES III is capable of testing all modern high power electrosurgical units with generator output current accuracy as low as ± 2.5 %.

Dimensions (HxWxL): 14.5 cm x 35 cm x 47 cm (5.75 in x 13.75 in x 18.5 in)
Weight: 7.5 kg (16.5 lbs)

Unit FeaturesCaractéristiques de l'unitéSoftware FeaturesCaractéristiques du logiciel

Featherweight design, functional strap, and tilt stand

Rigorously tested for safety and reliability,

Features

Rubberized case and Ingress Protection rating of IP30 prevent damage and sustain the rigor of transportation

Portable: Featherweight design, functional strap, and tilt stand make it easy for transportation and operation on-the-go (onsite or offsite)

Quick push-button operation for rapid testing

Global Use: the ESA609 will operate at 120V and 230V

Rigorously tested for safety and reliability, with CE, CSA and Australia RCM in addition to Fluke quality

Two-year extended warranty (no-cost, available after first-year calibration at any authorized Fluke Biomedical Service Center)

IEC Standards compliance: ANSI/AAMI ES1, NFPA-99, and parts of IEC62353 and IEC60601-1

Specifications

Temperature Requirements: 0° C to 50° C (32 °F to 122 °F) when operating; -20° C to 60° C (-4 °F to 140 °F) in storage

Humidity: 10 % to 90 % non-condensing

Altitude: 2000 m maximum

Power
Power Requirements: 100 V ac, 115 V ac, 230 V ac, 50 Hz / 60 Hz; universal input: 100 V/115 V: 20 VA; 230 V: 30 VA

User interface
LCD display: Monochrome 240 pixels x 64 pixels, 8 lines x 40 characters, white LED backlight
Keys: 6 (1 fixed, 5 soft-defined) and rotary selector knob

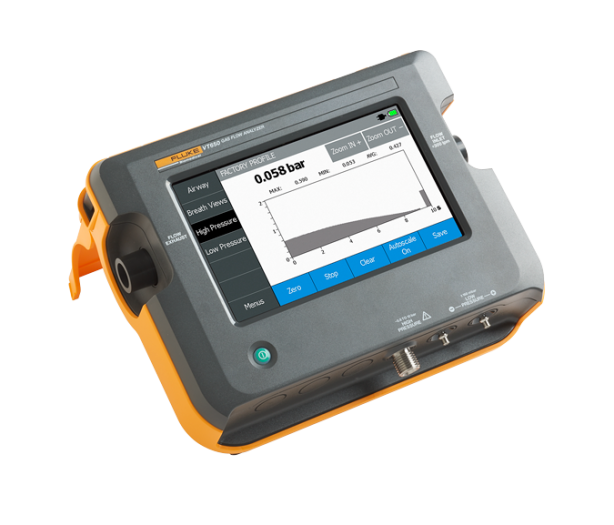

VT650

Lightweight, accurate and portable, the VT650 Gas Flow Analyzer offers high accuracy, reliability and portability for respiratory medical equipment testing, including neonatal, mechanical and high-frequency ventilators.

Display dimensions (LxWxH): 17.8 cm (7 in)
Weight: 3.6 lb (1.6 kg)

Unit FeaturesCaractéristiques de l'unitéSoftware FeaturesCaractéristiques du logiciel

Record and save data with the on-board internal memory

Operate on-the-go, all day with AC and DC power options and extended battery life

Additional Features

Quickly access menu options and test profiles, interpret results and see measurements at a distance up to 6’ (1.8 m) with the large, easy-to-read 7" (17.8 cm) color touch screen

Easily transport and store the lightweight (3.64 lb/1.6 kg), all-in-one device – no extra modules for different tests

Streamline your testing procedure, reduce errors, and quicken your test time with the ability to create customized test profiles

Reduce testing time with built-in line sensors which automatically test humidity temperature and oxygen while compensating for atmospheric pressure and environmental conditions

Quickly access menu options interpret results and see measurements at a distance up to 6’ (1.8 m) with the large easy-to-read 7 (17.8 cm) color touch screen

Specifications

Temperature Requirements: 10 ºC to 40 ºC (50 ºF to 104 ºF) when operating; -20° C to 60° C (-4 °F to 140 °F) in storage.
Humidity: 10% to 90% non-condensing when operating; 5% to 95% non-condensing in storage

Battery life: 8 hrs

Charge time in hours: 5 hrs, typical

Connection type: USB, Micro-B device port

Single full-Range channel: √

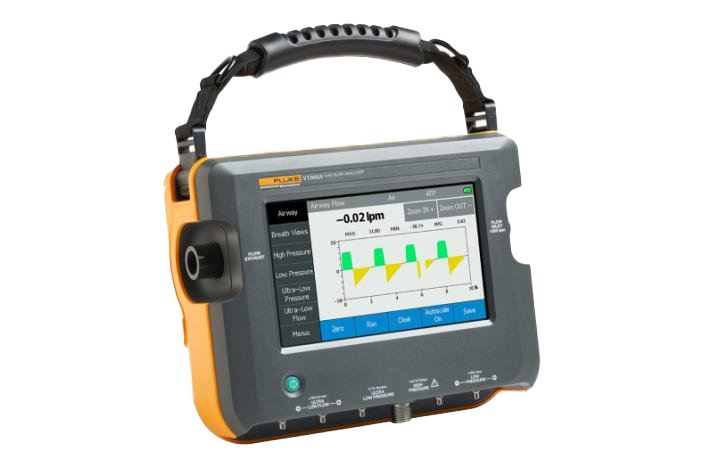

VT900A

VT900A Gas Flow Analyzer / Ventilator Tester is designed to accurately and reliably test all types of gas flow equipment, especially those requiring high accuracy in ultra-low flow and ultra-low pressure measurements.

Dimensions : 23.9 x 18.8 x 7.6 cm (9.4 x 7.4 x 3 in)
Weight: 3.6 lb (1.6 kg)

Unit FeaturesCaractéristiques de l'unitéSoftware FeaturesCaractéristiques du logiciel

Large touch screen allows you to view multiple measurements at once, and quickly access menu options.

Portable, traceable, and highly accurate ventilator tester and analyzer for all types of respiratory equipment.

Additional Features

Create customized test profiles

Ensure patient safety with ultra-low flow and ultra-low pressure anesthesia and flow meter testing

Operate on-the-go, all day with AC and DC power options and extended battery life

Record and save data with the on-board internal memory

Easily transport and store the lightweight (3.6 lb/1.6 kg), all-in-one device

Reduce testing time with built-in line sensors which automatically test humidity temperature and oxygen while compensating for atmospheric pressure and environmental conditions

Specifications

Battery life: 8 hrs

Charge time in hours: 5 hrs, typical

Connection type: USB, Micro-B device port

Display: 17.8 cm (7 in)

Single full-Range channel: √

VT900A W/ VAPOR

The VT900A + VAPOR Ventilator and Anesthesia Test duo is designed to efficiently and reliably perform a full anesthesia machine PM, from ventilators to vaporizers, and automatically detects the 5 major anesthetic agents, CO2, and N2O, and identifies them by their international color code for easy identification.

Dimensions : 23.9 x 18.5 x 8 cm (9.05 x 7.28 x 3.15 in)
Weight: 3.6 lb (1.6 kg)

Unit FeaturesCaractéristiques de l'unitéSoftware FeaturesCaractéristiques du logiciel

Streamline your testing procedure by performing a complete anesthesia machine PM/efficacy test with one setup

Avoid confusion and improve efficiency with auto-detection of anesthetic agents and color-matched gas identification

Additional Features

Reduce bulk and improve ease of transport with a convenient carrying case for the lightweight accessory and gas flow module

Operate on-the-go all day with durable, robust design, AC and DC power options and 8 hours of battery life

Simplify calibration and servicing with one manufacturer for all anesthesia test equipment

Reduce testing time with 7-in. color touch screen, quick-connect fitting and complete anesthesia hosing accessory kit

Confidently test with accuracy that meets vaporizer manufacturer recommendations

Ensure patient safety with automatic detection and measurement of CO2, N2O and five commonly used anesthetic agents

Specifications

Temperature Requirements: 10 ºC to 40 ºC (50 ºF to 104 ºF) when operating; -20° C to 60° C (-4 °F to 140 °F) in storage.
Humidity: 10 % to 90 % non-condensing when operating; 5 % to 95 % non-condensing in storage

Battery life: 8 hrs

Charge time in hours: 5 hrs, typical

Connection type: USB, Micro-B device port

Display: 17.8 cm (7 in)

Single full-Range channel: √

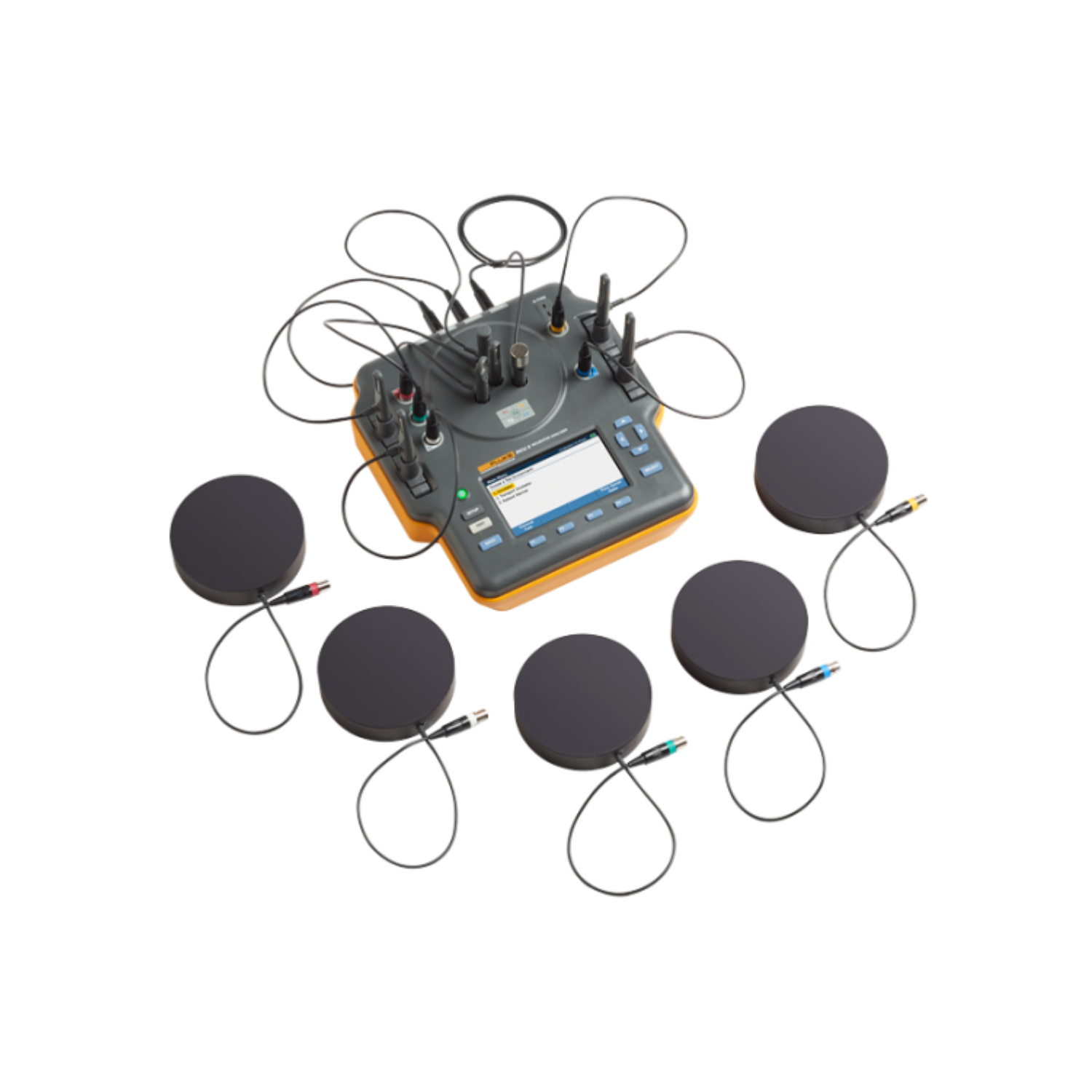

INCU II

The INCU II Neonatal Warmer is an all-in-one Incubator/radiant neonatal warmer analyzer that simplifies testing and ensures proper performance and safety of infant incubators, transport incubators and radiant neonatal warmers by complying to global standards. Protect a baby’s safety by regularly performing all necessary preventive maintenance tests on infant incubators and radiant warmers. Life matters. Testing matters.

Dimensions (LxWxH): 6 x 21 x 23 cm (2.5 x 8.5 x 9.0 in)
Weight: 8.5 lb (3.9 kg)

Unit FeaturesCaractéristiques de l'unitéSoftware FeaturesCaractéristiques du logiciel

Displays pass/fail indicators, real-time test results and parameters on a large color LCD screen

Enables simultaneous measurement of humidity, airflow, sound, and temperature from six different points

Additional Features

Portable and intuitive-to-use

Quickly and conveniently download test results and data with wireless functionality

Simplify test set-up with color-coded temperature probes that match color of input ports

Easily analyze results with built-in test automation that features simple pass/fail indicators

Protect and enhance traceability with downloadable test data and reports to your CMMS

Test all day with 24 hour battery life which allows for long-term testing, and the INCU II can store up to 48 hours of test memory.

Automate and standardize your testing procedure with customizable test sequences and built-in automation

Ensure quality assurance and patient safety by complying with all global standards.

Specifications

Temperature Requirements: 10 ºC to 40 ºC (50 ºF to 104 ºF) when operating; -20° C to 60° C (-4 °F to 140 °F) in storage.
Humidity: 10 % to 90 % non-condensing when operating; 5 % to 95 % non-condensing in storage

Battery life: 24hrs (rechargable battery); 48 hours on AC power

Interface languages: English, French, German, Italian, Spanish, Brazilian Portuguese, Simplified Chinese, Japanese, Russian, Polish

Safety: IEC 60601-2-19, IEC 60601-2-20 and IEC 60601-2-21

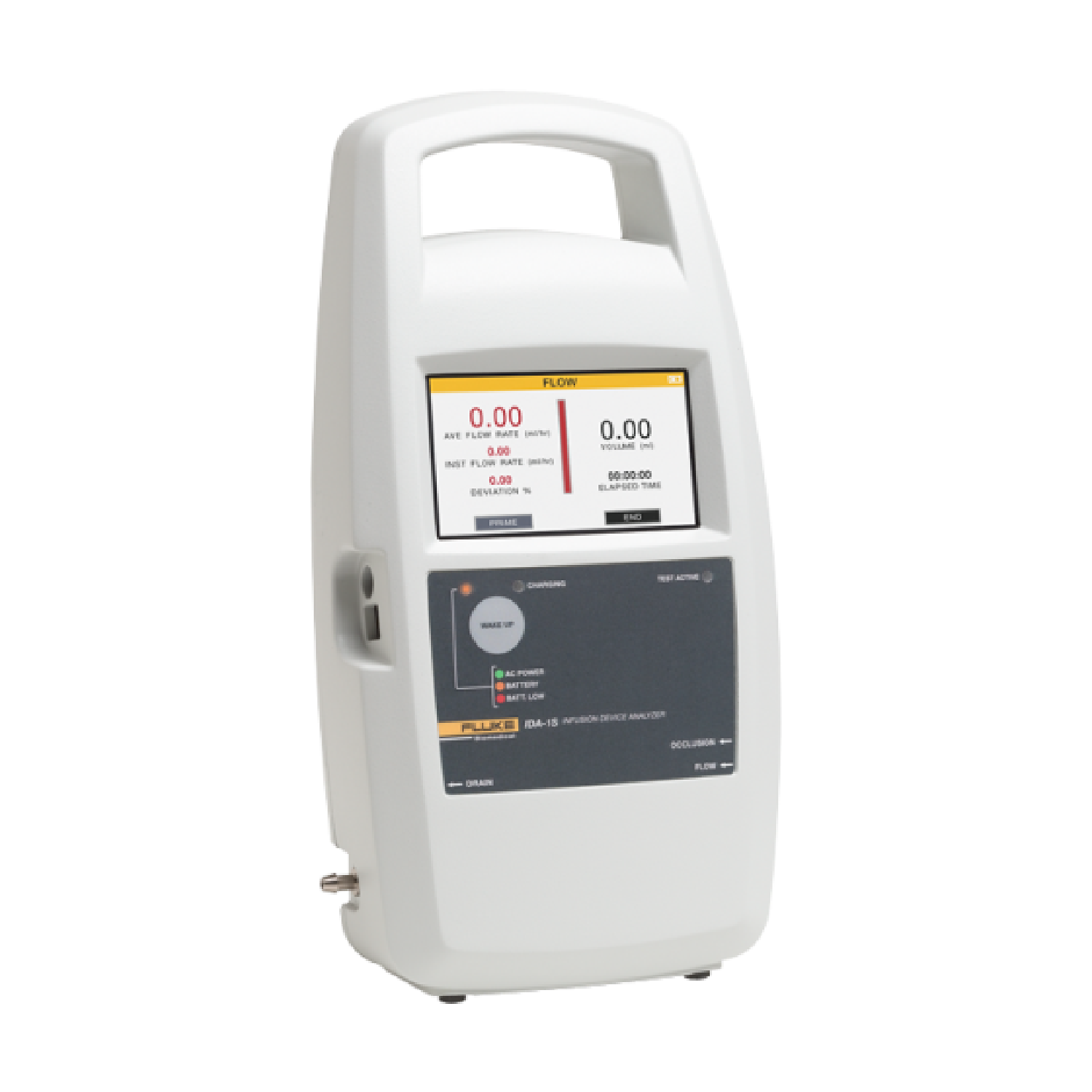

IDA-1S

IDA-1S is a portable, high-performance infusion device analyzer designed for fast and accurate verification of infusion pumps, on-the-go.

The IDA-1S measures the flow rate and volume delivered, and the pressure generated in occlusions or blockages of the fluid line and is based on sophisticated measurement technology trusted by biomedical professionals around the world. The IDA-1S infusion device analyzer is easy to set up and requires little or no training to use. It can be used to analyze a wide variety of infusion pumps and the auto-start feature simplifies syringe pump testing and other tests that have long startup times.

Dimensions: 30 x 17 x 10 cm (12 x 8 x 4 in)
Weight: ~1.2 kg (2.7 lbs)

Unit FeaturesCaractéristiques de l'unitéSoftware FeaturesCaractéristiques du logiciel

Integrated carrying handle and lightweight (2.7 lbs) for easy portability

Compatible with a wide variety of infusion pumps

Additional Features

Ensures maximum accuracy with Autostart mode enabling unit to begin testing only when fluid is detected

On-board memory allows test results storage instantly

LCD touchscreen for ease of use

Occlusion pressure measurements to 45 psi

Hydrograph graphical software to control unit, display results and print results via PC

Global sales, service and support

Specifications

Temperature Requirements: 15°C to 30°C (59°F to 86°F); -20°C to +40°C (-4°F to +104°F) when drained of all liquid.
Humidity: 10 % to 90 % non-condensing when operating; 5 % to 95 % non-condensing in storage.

Display: 17.8 cm (7 in)

Storage of Results: Test results stored for later viewing, printing or transfer to PC. Typical practical capacity: 100 tests

Power Down: The results of tests in progress will be saved in the case of accidental power down

Computer Control: The Product can be fully controlled from a PC using HydroGraph V3 software for IDA-1S

Battery Power: 4 x Panasonic HHR210AB NiMh 2000 mAh batteries

Battery life: 10 hours

Safety: IEC 61010-1: Overvoltage category II, Pollution Degree 2

Electromagnetic Environment: IEC 61326-1: Basic

Emissions Classification: IEC CISPR 11: Group 1, Class A.

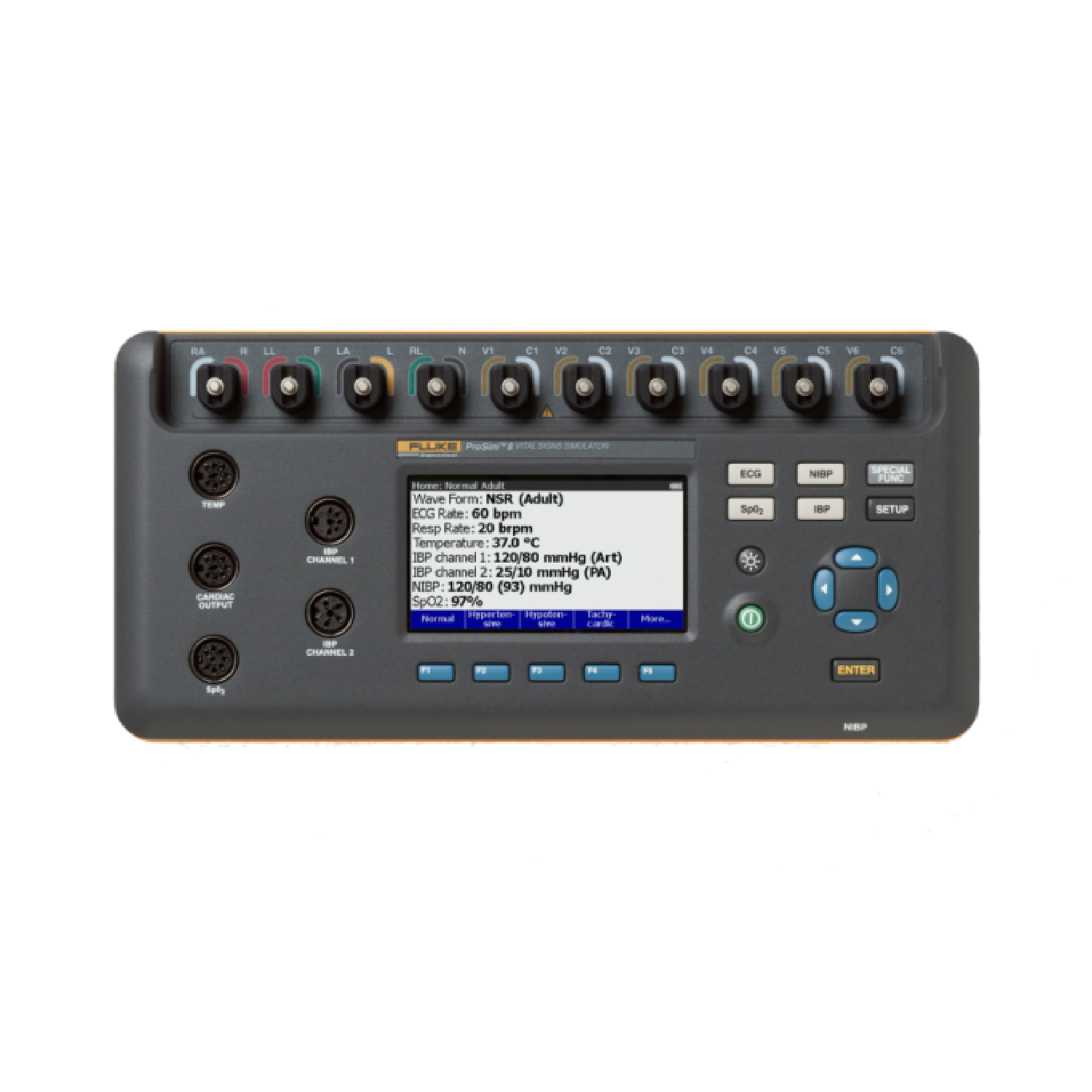

ProSim 8 SPOT KIT

The 8-in-1 ProSim 8 Vital signs simulator offers fast and comprehensive preventative maintenance (PM) testing with one device in less than five minutes, reducing average test time by up to 88% and ensuring your devices provide the ultimate in-patient safety. The ProSim 8 patient simulator is also ideal for design engineers looking for a known physiological signal output.

Dimensions (LxWxH): 14.5 cm x 30.2 cm x 8.6 cm (5.7 in x 11.9 in x 3.4 in)
Weight: 1.87 kg (4.2 lb)

Unit FeaturesCaractéristiques de l'unitéSoftware FeaturesCaractéristiques du logiciel

All-in-one patient simulator 80% smaller and 17 lbs./7.7 kilos lighter than single function simulator test tools

Stay-connected ECG posts for easy/secure ECG snap and lead connections

Additional Features

8-in-1 multifunction patient simulator is a combination ECG simulator, fetal simulator, arrhythmia simulator, respiration simulator, temperature simulator, IBP simulator, cardiac output simulator, cardiac catheterization simulator, NIBP simulator and is the premier SpO2 simulator to test Rainbow multi-wavelength waveforms (with optional ProSim SpO2 Test Module)

Custom SpO2 R-curve for accurate testing of the latest and future oximetry technologies

Static pressure linearity testing

Repeatable NIBP simulation for dynamic pressure repeatability testing

Physiologically synchronized pulses across all parameters

Barcode scanning and direct data capture and printing functionality

Onboard, customizable patient pre-sets and auto sequences for fast/easy testing

Multi-language user interface available in English, Spanish, German, French, Japanese, Italian, and Chinese.

Integrated, easily-replaceable long-life battery

Optional PC-interface software offers customizable procedures/checklists and automated data capture/storage

Wireless communication for remote PC control of test device, as well as data transfer and automated regulatory reporting

Compatible with patient monitors by original equipment manufacturers such as: * GE Healthcare, Philips Healthcare, Spacelabs Healthcare, Nihon Kohden, Welch Allyn, and Draeger (Dräger). * Brand and trade names remain the property of their respective owners. Usage does not imply an endorsement.

Specifications

Temperature Requirements: 10 °C to 40 °C (50 °F to +104 °F) when operating; -20 °C to +60 °C (-4 °F to +140 °F) when in storage.
Humidity: 10 % to 90 % non-condensing

Display: LCD color display

Storage of Results: Test results stored for later viewing, printing or transfer to PC. Typical practical capacity: 100 tests

Communication:
USB device upstream port: Mini-B connector for control by a computer
USB host controller port: Type A, 5 V output, 0.5 A max load. Connector for keyboard, barcode reader, and printer
Wireless: IEEE 82.15.4 for control by a computer

Power: Lithium-ion rechargeable battery

Battery life: 9 hours (minimum), 100 NIBP cycles typical

Safety standards: IEC 61010-1 3rd Edition; Pollution degree 2

Certifications: CE, CSA, C-TICK N 10140, RoHS

Electromagnetic compatibility (EMC): IEC 61326-1:2012

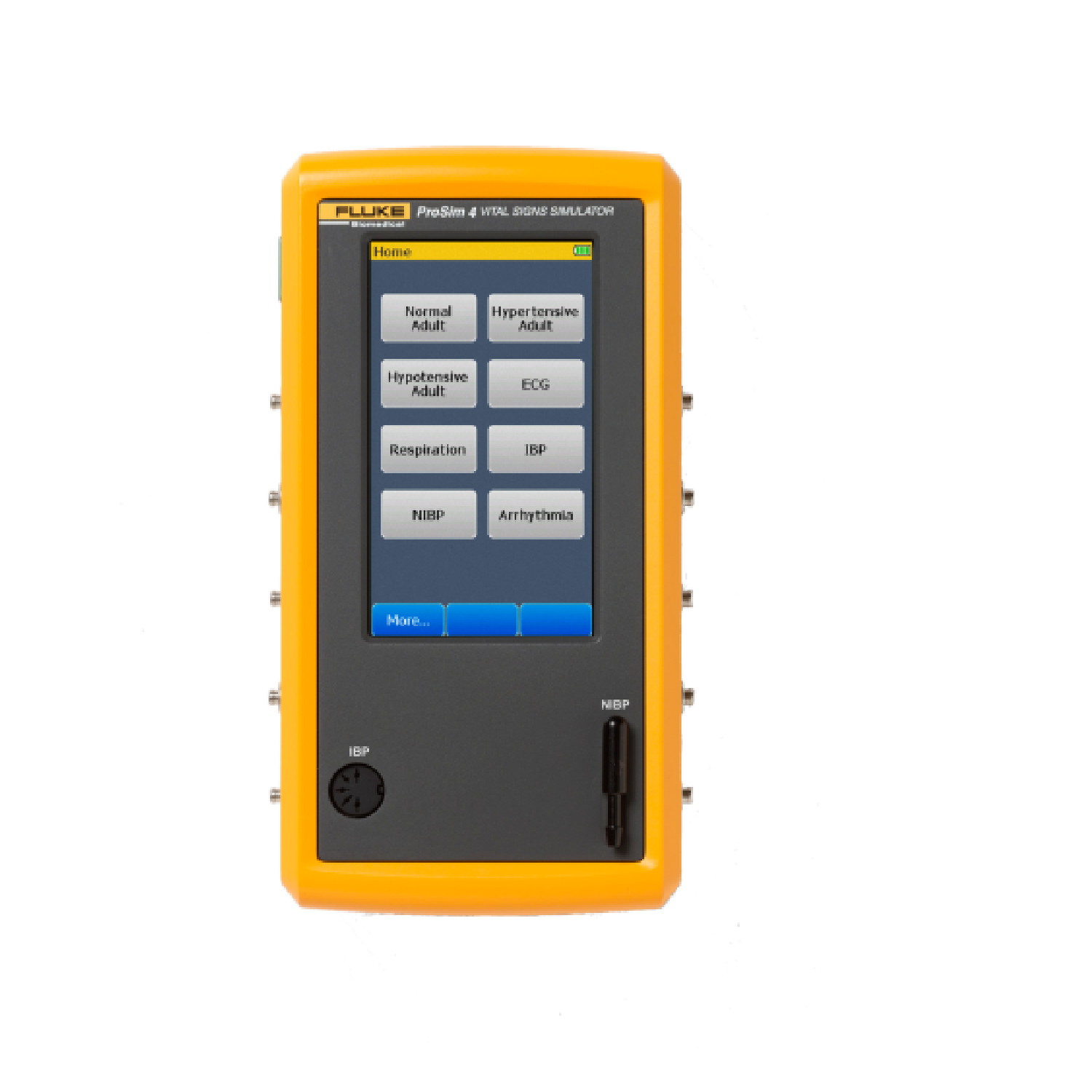

PROSIM 4

ProSim 4 vital signs simulator with breakthrough touchscreen technology offers quick and simple one-tap testing for patient monitor performance checks and troubleshooting. Designed to get you in and out of most locations in 60 seconds, this quick-check device offers 12-lead ECG simulation, respiration, IBP and NIBP testing in the palm of your hand. Featuring specialized stay-connected ECG posts to ensure secure lead connections and no-hassle testing, ProSim 4 is the perfect patient simulator for first-call patient monitor quality assurance and safety professionals.

Weight: 0.88 kg (1.93 lb)
Product dimensions (LxWxH): 18 cm x 9.3 cm x 5.5 cm (7.1 in x 3.7 in x 2.2 in)

Unit FeaturesCaractéristiques de l'unitéSoftware FeaturesCaractéristiques du logiciel

Accurate/repeatable 12-lead ECG, respiration, IBP and physiologically-relevant NIBP testing

90% smaller and lighter than combined technology of single-function testing tools

Additional Features

Large touch screen allows for easy navigation with breakthrough touchscreen technology

Presets and auto sequences let you do a quick check in 60s

Multi-parameter tester - carry fewer tools

One-tap testing for most performance tests and checks

Integrated, rechargeable battery capable of running quick checks all day

Stay-connected ECG posts for secure lead connections

Multi-language user interface offers choice of language selection

Tilt stand design for operation in tight spaces and better viewing angle

Specifications

Temperature Requirements: 10 °C to 40 °C (50 °F to +104 °F) when operating; -25 °C to +50 °C (-13 °F to +122 °F) when in storage.
Humidity: 10 % to 80 % non-condensing

Display: LCD touch-screen color display

Storage of Results: Test results stored for later viewing, printing or transfer to PC. Typical practical capacity: 100 tests

Communication: USB port (for calibration and firmware updates only)

Power: Lithium-ion rechargeable battery

Battery life: 4 hours (minimum), 40 NIBP cycles typical

Safety standards: IEC 61010-1 3rd Edition; Pollution degree 2

Certifications: CE, CSA, C-TICK N 10140, RoHS

Electromagnetic compatibility (EMC): IEC 61326-1:2012

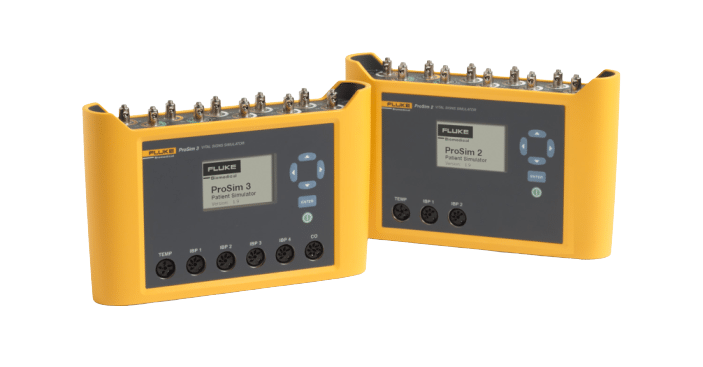

PROSIM 2/3

The ProSim 2 and ProSim 3 vital signs simulators evaluate the performance of patient monitors, suitable for biomedical engineering and field service technicians that need a quality feature rich device with high portability (Portability meets performance).

Product dimensions (LxWxH): 14.0 cm x 20.6 cm x 4.5 cm (5.5 in x 8.2 in x 1.8 in)
Weight 0.47 kg (1 lb, 4 oz)

Unit FeaturesCaractéristiques de l'unitéSoftware FeaturesCaractéristiques du logiciel

Portable and lightweight, equipped with enough battery life to last a full work day

20% lighter and 25% smaller than predicate devices

Additional Features

Field upgradeable firmware and easily paired with other devices for comprehensive testing

Simple user interface and stay connected ECG posts

Streamlined cable requirements with updated DIN connectors that ensure ProSim family consistency

Easily pairs with SPOT Light and other devices for comprehensive testing

Just-right feature set includes ECG, pacemaker, arrhythmia and performance testing, respiration, invasive blood pressure, temperature, cardiac output (ProSim 3 only), fetal/maternal (ProSim 3 only)

43 high-quality ProSim 8 waveforms

With four IBP channels, ProSim 3 can test even the highest acuity scenarios

Improved hardware includes stay-connected ECG posts and upgraded DIN connectors

Simplified user interface with four button navigations

Specifications

Temperature Requirements: 10 °C to 40 °C (50 °F to +104 °F) when operating; -25 °C to +50 °C (-13 °F to +122 °F) when in storage.
Humidity: 10 % to 80 % non-condensing

Display: LCD greyscale display

Storage of Results: Test results stored for later viewing, printing or transfer to PC. Typical practical capacity: 100 tests

Communication: USB device upstream port

Power: Two 9 V alkaline batteries

Battery life: 8 hours continuous operation

Safety: IEC 61010-1 3rd Edition; Pollution degree 2

Certifications: CE, CSA, C-TICK N 10140, RoHS

Electromagnetic compatibility (EMC): IEC 61326-1:2012

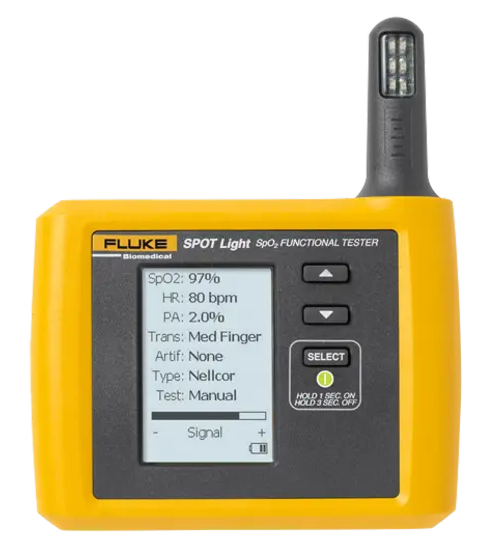

PROSIM SPOT LIGHT

The ProSim SPOT Light is a handheld SpO₂ functional tester designed for fast, accurate pulse oximeter verification. Featuring an ergonomic design, intuitive controls, and customizable test presets, it delivers comprehensive SpO₂ simulation in a lightweight portable device, making routine testing quicker and more efficient in both clinical and field environments.

Dimensions (LxWxH): 12.2 × 9.7 × 4.8 cm (4.8 × 3.8 × 1.9 in)
Weight: 8.8 oz

Unit FeaturesCaractéristiques de l'unitéSoftware FeaturesCaractéristiques du logiciel

Comprehensive handheld SpO₂ functional testing

Customizable test presets for faster verification

Additional Features

Lightweight handheld design built for everyday clinical and field use.

Large LCD display with simple three-button operation.

Rechargeable battery provides a minimum of 10 hours of continuous operation.

Simulates SpO₂ saturation from 70% to 100%.

Heart rate simulation from 30 to 240 BPM.

Adjustable perfusion settings at 0.2%, 2%, and 10%.

Simulates dark/thick, normal, and light/thin finger transmission.

Includes respiration and ambient light artifact simulation.

Three editable test sequences for customized workflows.

Supports eight manufacturer-specific R-curves, including Masimo, Nellcor, and Nonin.

Expandable pairing with other Fluke Biomedical analyzers for complete medical device testing.

Specifications

SpO₂ Saturation Range:
70%, 75%, 80%, 85%, 90%, 95%, 97%, 98%, 99%, and 100%.

Heart Rate Simulation:
30, 40, 60, 65, 80, 100, 120, 140, 150, 180, and 240 BPM.

Perfusion Settings:
0.2%, 2%, and 10%.

Transmission Levels:
Dark/thick, normal, and light/thin finger simulation.

Artifact Simulation:
Respiration and ambient light (50 Hz or 60 Hz).

Operating Temperature:
0°C to 35°C (32°F to 95°F).

Storage Temperature:
−35°C to 50°C (−31°F to 122°F).

Operating Humidity:
20–80% RH, non-condensing.

Battery:
Rechargeable lithium-ion battery with approximately 10 hours of operating time and a 2-hour recharge time.

Display:
2¼" × 1½" LCD display.

Power Input:
100–240 V AC, 50/60 Hz.
